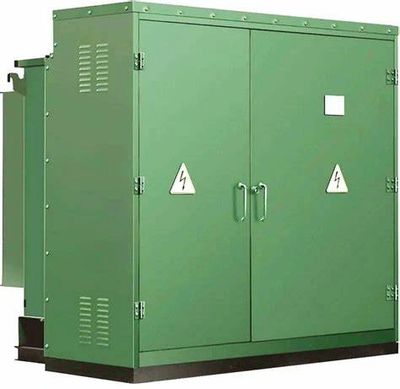

Pad Mounted Transformers

---

Pad Mounted Transformer is an oil-filled step down transformer hermetically sealed with gas cushion designed to position on a concrete pad and specifically designed for servicing underground distribution loads commonly used in residential and commercial areas to provide power lighting, appliances and other electrical equipment's. It features built-in fuses as well as switches. it is available in both live front and dead front construction, for radial and loop feed applications, with or without taps. The transformer uses aluminum or copper winding and is optimized to maximize efficiency and footprint. It has many advantages such as compact, light weight, low loss, ease of maintenance, cost effective, enhanced in aesthetics and safety, environmentally safe etc. Designed and tested in accordance with industry standards including IEEE, IEC, ANSI, DOE, NEMA and CSA as applicable.

Design Capability:

Installation            Outdoor/ Indoor ground mounted

Type of cooling     ONAN, ONAN/ONAF, KNAN, KNAN/KNAF

Rating                    Up to 10 MVA

Voltage                  Up to 44000 Volts

Phase/Freq           3 Phase/ 60 Hz

Vector Group        Dyn1, Dyn5, Dyn11 or any specific

HV configuration  Loop feed/Radial feed

Winding Material  Aluminum/Copper

HV Termination    Dead front/Live front Bushings in ATC

LV Connections   Bushings with NEMA 4-hole, 6-hole, 8-hole, 10-hole or 12-hole spades in ATC

Insulating Fluid    D3487, FR3, Ester oil

Standards             ANSI/IEEE, IEC, NEMA, DOE, CSA Mineral oil as per IEC 60296, ASTM

Applications:

• Data Centers
• Solar & Wind Applications
• Mining & Large Scale Industries
• Residential Facilities
• Large Industrial

Standard Features:

• Mild steel tank and cabinets
• Three point latching door for security
• Cooling radiators
• Pressure Vacuum Gauge without contact
• Valve for filling & release of pressurized gas
• Liquid level and temperature gauge without contact De-energized tap changer
• Automatic operated pressure release valve Manhole with bolted cover
• Oil drain valve with sampler
• Rating & diagram plate

Optional Features:

• Contact JS Energy for additional options.
